Installing support for PLGS versions 2.4
To use this format you must install plugins for both TransOmics™ Informatics and PLGS.
Adding the PLGS add-on to TransOmics™ Informatics
Shut down TransOmics™ Informatics.
Download
the TransOmics™ Informatics add-on and double click the .msi file to install it.
Open TransOmics™ Informatics. In the “Peptide Search” section, PLGS (*.xml) should now appear in the list of drop down options.
Adding the Progenesis plugin to your PLGS version 2.4 setup
Download the PLGS plugin file
nldplugin.jar
.
Save it to the PLGS plugin folder, e.g. C:\PLGS2.4\jars\nldplugin.jar.
Open the PLGS browser.

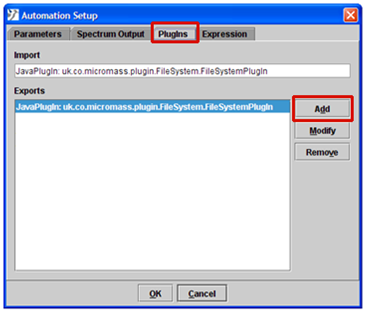

Click the Options | Automation Setup menu item.
Select the PlugIns tab.
Click the Add button.

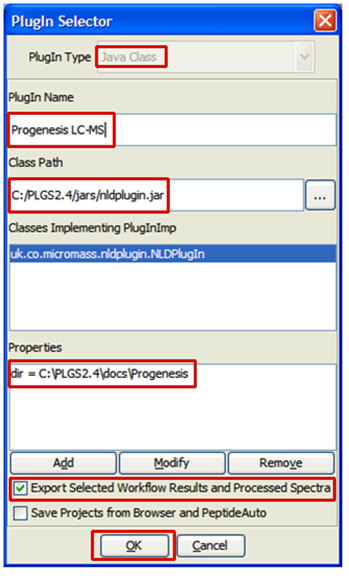

Select the Java Class option and enter the PlugIn Name and Class Path as shown below
Click the Add button bring up the Add/Modify properties dialog:
Enter “dir” in the Name section
Enter the folder you wish XML files to be exported to in the Value section:
Click OK on the Add/Modify Properties, PlugIn Selector and Automation Setup dialogs.
Close and restart the PLGS browser to register the changes.
