Support for METLIN™ MS/MS Library

For details of pricing and how to purchase this compound search method, please contact us.

About this plug-in

The Waters® METLIN™ MS/MS Library for Progenesis QI contains a local copy of the METLIN database, and allows you to search this copy rapidly.

The METLIN™ MS/MS Library search method, with an example file and parameters chosen.

The METLIN™ MS/MS Library search method, with example parameters chosen.

The use of this method has the following steps:

  1. In the Identify Compounds screen, filter the list of compounds to show only those that you want to identify.
  2. Choose a set of search parameters from the Choose search parameters drop-down (you might need to first create or edit a search parameter set. See the section on search parameters below for how to do this).
  3. Click the Search for identifications button.

When the search is complete, a prompt will tell you how many compounds have been identified. You can then continue with your analysis, identifying further compounds if necessary by searching with other parameter sets.

Search parameters

The Waters® METLIN™ MS/MS Library for Progenesis QI comes with a basic set of default parameters. It will search the library, using both in-silico and empirical fragments, with a precursor tolerance of 12ppm and a fragment tolerance of 12ppm. However, you may wish to create your own parameter sets, or modify the built in configuration.

To edit or create a new search parameter set, choose the appropriate option in the drop-down to the right of the parameter set name:

Waters® METLIN™ MS/MS Library for Progenesis QI edit or create new search parameter set drop-down

This will open a dialog where you can fill in the various search parameters:

The Waters® METLIN™ MS/MS Library for Progenesis QI search parameters dialog

Briefly, the options available to you are:

Name
Give the search parameter set a useful name to refer to later.
Precursor tolerance
Choose the threshold (in ppm or Da) within which the neutral mass must lie to constitute a match.
Fragment tolerance
Choose the threshold (in ppm or Da) within which fragments must match the database to contribute to the score.
Fragmentation type
The Waters® METLIN™ MS/MS Library for Progenesis QI contains experimental MS/MS fragments for some 14,000 metabolites and in silico (theoretical) fragments for another 200,000 metabolites. Select whether to use the full database or only the experimental fragments.

It is also possible to further filter the identifications using elemental composition. By ticking the Filter by elemental composition checkbox and clicking the Select elemental composition... button, you will see the following dialog:

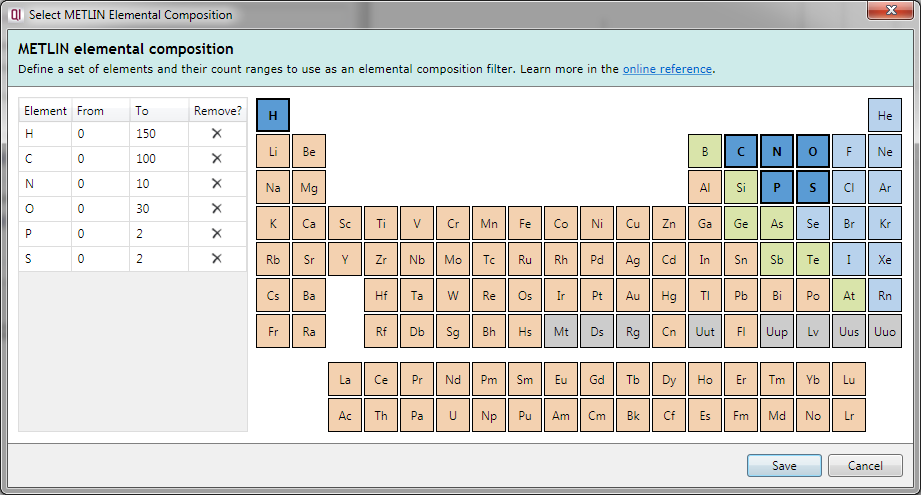

Elemental composition dialog

Elemental composition dialog

Clicking on a currently-excluded element in the periodic table table adds it to the filter, allowing compounds containing that element to be considered as possible identifications. The element will now be listed in the table on the left.

The From and To fields in the table allow you to specify a minimum and maximum number of atoms of each element that may be present in the compound.

To remove an element from the specification, you can press the Delete key with that element selected in the left table, click on the cross button in the Remove? column of that table, or click on the element in the periodic table a second time.

After entering your search parameters, click Save search parameters to save your search parameter set for use in this and future experiments.

Licensing

Before using the METLIN™ MS/MS Library for Progenesis QI, you need to activate a METLIN™ MS/MS Library for Progenesis QI license on your existing Progenesis dongle.

All subsequent uses of the METLIN™ MS/MS Library for Progenesis QI require the activated dongle to be plugged in.

You can find out how to activate your METLIN™ MS/MS Library for Progenesis QI license here.
